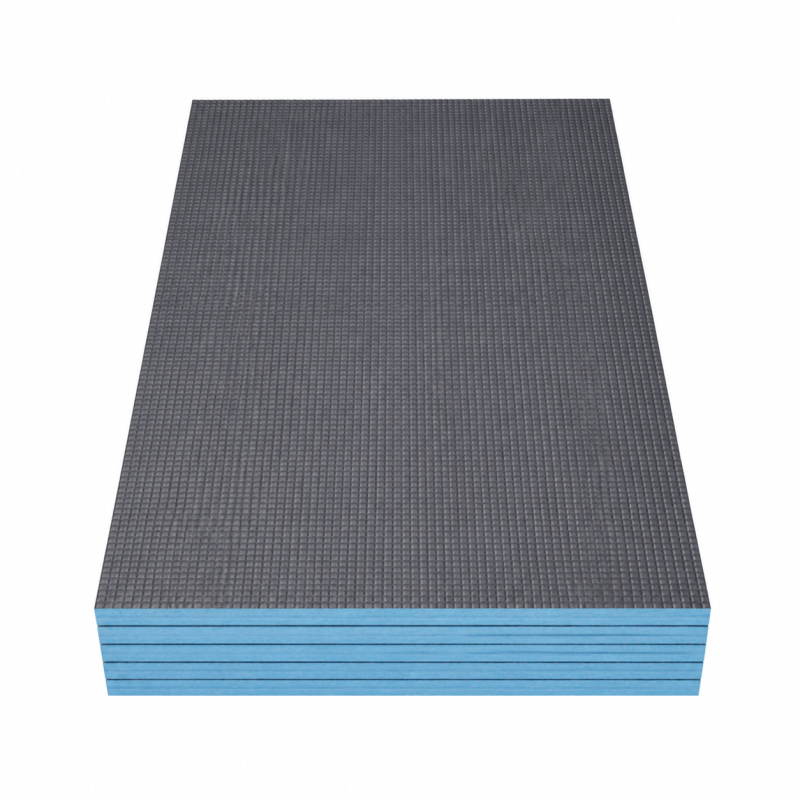

Home > XPS Tile Backer Board > Tile Backer Board

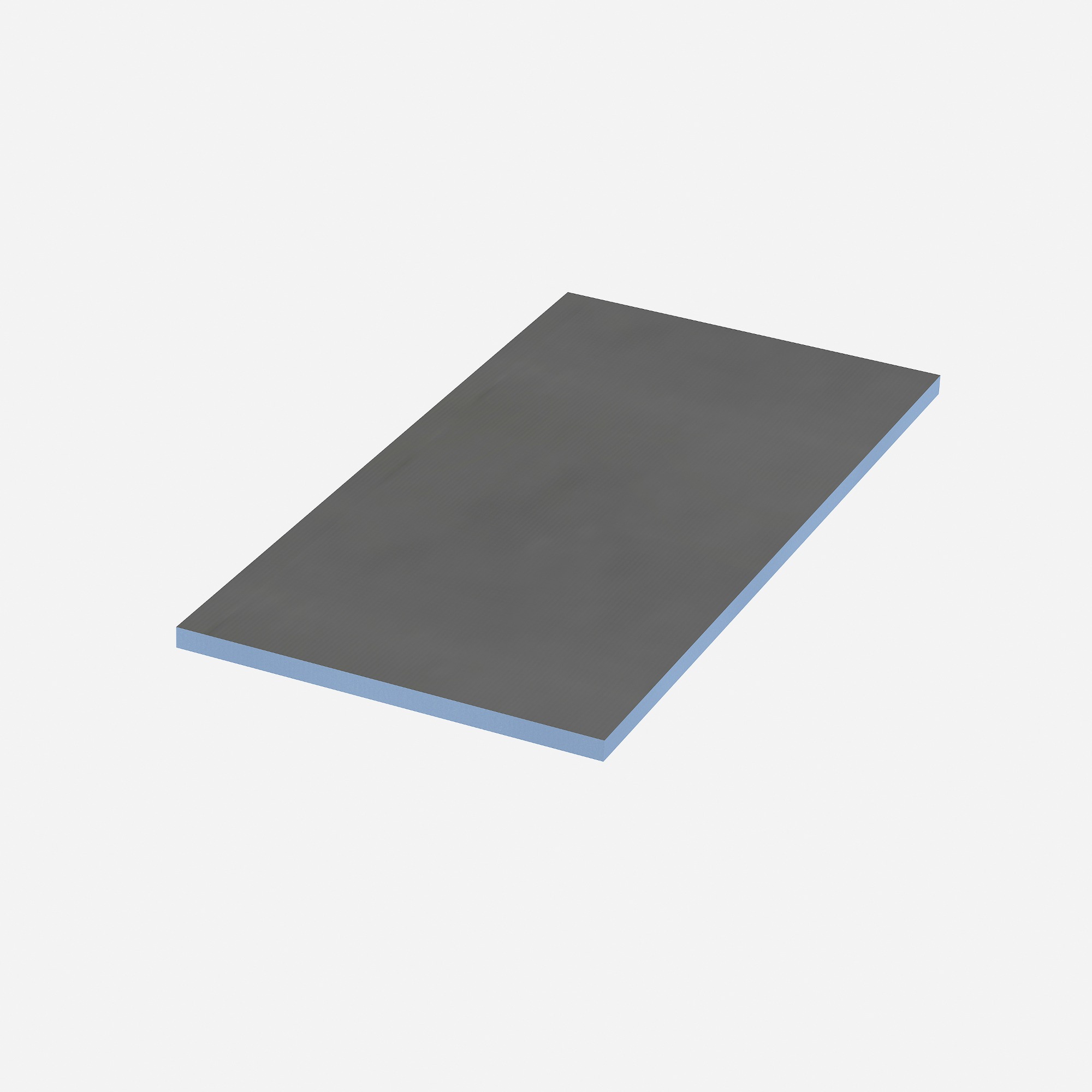

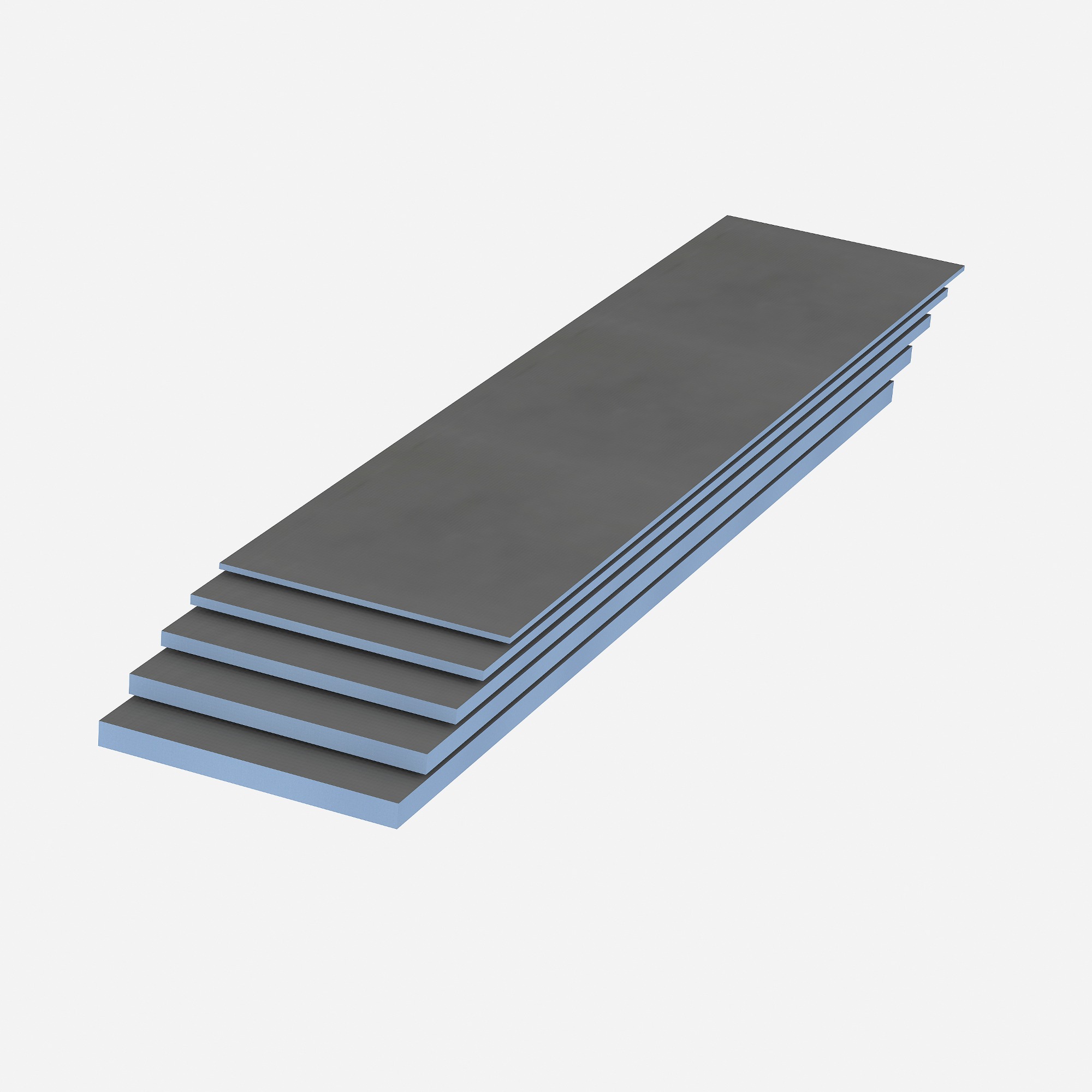

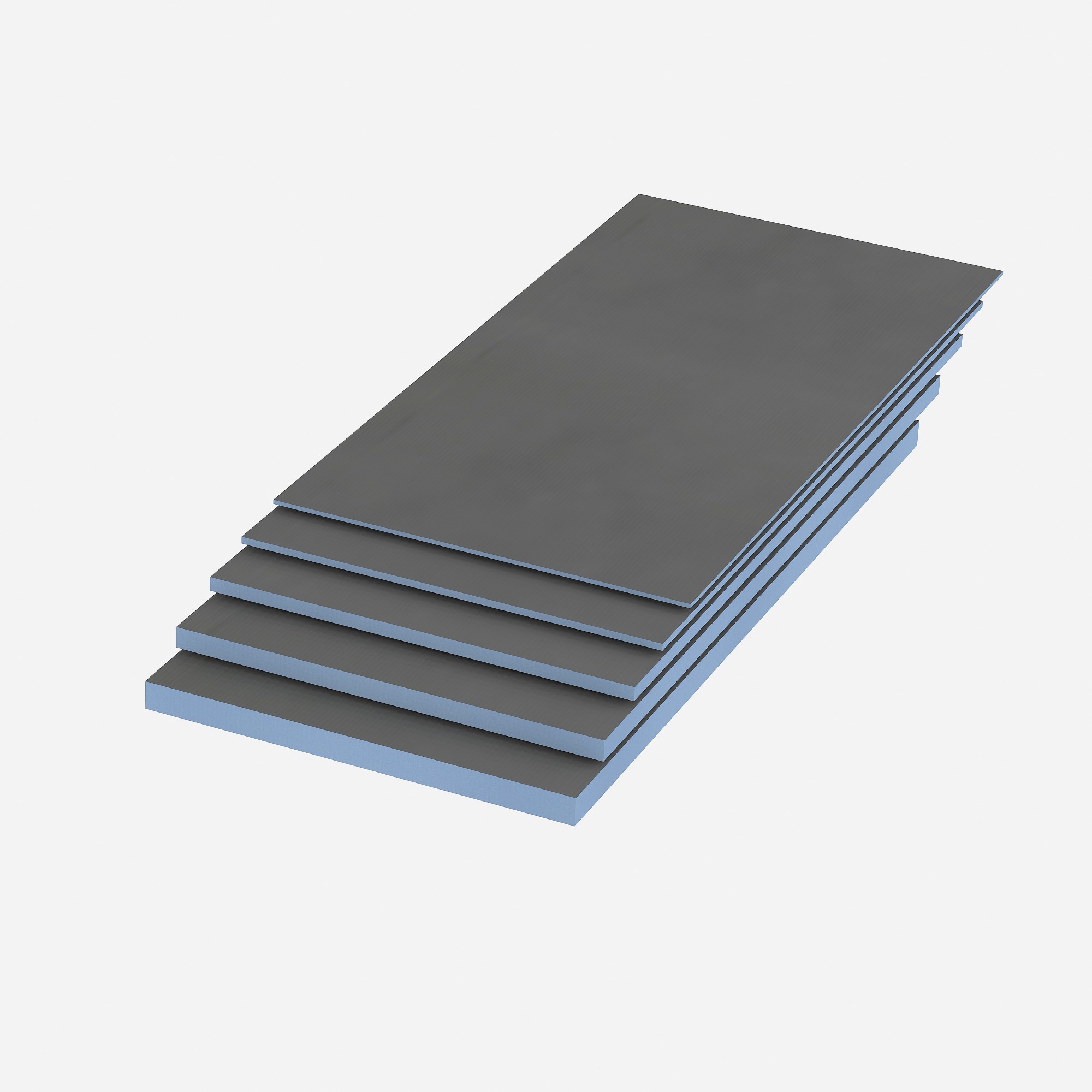

Waterproof Polystyrene Tile Backer Board Fiberglass & Cement Coated Insulated Wall Panel 5 Year Warranty for Bathroom Wet Room

Waterproof Polystyrene Tile Backer Board Fiberglass & Cement Coated Insulated Wall Panel 5 Year Warranty for Bathroom Wet Room

Name: Waterproof Polystyrene Tile Backer Board Fiberglass & Cement Coated Insulated Wall Panel 5 Year
Brand: LUX shower spa system
SKU: 00250
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 00250

Composite Structure: This waterproof XPS tile backer board combines a high density closed cell extruded polystyrene foam core with an alkali resistant fiberglass mesh and a polymer modified cement mortar coating on both sides.

FeatureWaterproof, lightweight and insulated

CoatingCement & Fiberglass mesh

MaterialXPS+fiberglass Mesh+cement Mortar

ColorBule

SizeNormal size and accpet customization

ShapeCan be cut to any shape

ApplicationWet room, under-floor heating, etc

Working Life15-20 years quality guarantee

Add to Inquiry Contact Us

Description Review

Description

Product Overview:
LUX Tile Backer Board is the innovative alternatives to traditional cement backers , It's HCFC-free waterproof XPS core, fberglass reinforced and cement coating gives the panel strength and vapor retardant. Making LUX panel is perfect choice for a variety of interior and exterior applications,such as the inter layer to wall or floor and thermal insulation board in underfloor heating system.

Benefits:
1. 100% waterproof,made of HCFC-FREE XPS foam.
2. High-rigidity and durability.
3. Close bond to any tilling walls or foors.
4. Avaliable at various thickness and size.
5. Compatibility to multiple substructures.
6. Thermal insulation for saving energy bills.
7. Vapor retardant against mildew.
8. Lightweight,easy to handle and cut with utility knife.

Product Size and Package (can be customized):

Technical Performance of LUX Tile Backer Board:

Applications:
1. Wall and floor insulation for interior and exterior.
2. Under-floor heating.
3. Waterproofing and insulating projects for wet areas, such as bathroom, kitchen, swimming pool, spa.
4. Enclosures for bathtubs, columns, steps and water pipes.

Instructions:
Concret Floors

1. Clean the solid non-deformable floor free from dust,dirt and other contaminations.
2. Flexible tile adhesive,combed through with a notch trowel,will the provide a ribbed bed on which LUX boards will be laid.
3. Push LUX boards onto the floor,all boards are dislocation arrangement.
4. Apply the boards joint with self-adhesive mesh and plaster the flexible adhesive above it.For high-demanding waterproof areas,a reinforced waterproof tape and coating is requested.
5. Tilling can be started once the boards are bonded on the floor tightly.

Wooden Floors

1. Clean the wood floor free from dust,dirt and other contaminations.
2. Flexible tile adhesive,combed through with a notch trowel,will the provide a ribbed bed on which LUX boards will be laid.
3. After the dlexible adhesive has set,use screws and washers to fix the board to the wood floor at least 300mm.
4. Apply the boards joint with self-adhesive mesh and plaster the flexible adhesive above it.For high-demanding waterproof areas,a reinforced waterproof tape and coating is requested.
5. Tilling can be started once the boards are bonded on the floor tightly.
